12 Cores Single Mode Fiber Patch Cord SCUPC Multi Core Connector

Place of Origin China
Certification Rohs SGS ISO9001:2008
Minimum Order Quantity 10pcs
Packaging Details 10pcs in blister bag
Delivery Time 2days for samples, 7-15days for bulk order
Payment Terms L/C, T/T, Western Union, Payapl
Supply Ability 10000pcs/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Bundled Pigtail Fiber Type G657 Or G652
Fiber Count 12 Core Material LSZH
Diameter 0.9mm Color Yellow
High Light

SCUPC Single Mode Fiber Patch Cord

,

SGS Single Mode Fiber Patch Cord

,

LSZH Multi Core Fiber Optic Cable

Leave a Message
Product Description

12 Cores Single Mode Fiber Patch Cord SCUPC Multi Core Connector

Single Mode​ Fiber Patch Cord 12 Cores SCUPC / Multi-Core Connector

Bundle pigtails, also known as pigtail bundles and multi-core connectors, have only one end with a connector, and the other end is a broken end of an optical fiber. It is connected to other optical fiber cores by fusion and often appears in optical fiber terminal boxes. Used to connect optical cables and terminal equipment.

1. Product Description of Single Mode​ Fiber Patch Cord 12 Cores:

Pigtails are divided into multimode pigtails and single-mode pigtails. The multimode pigtail is orange, the wavelength is 850nm, and the transmission distance is 2.5km, which is used for short-distance interconnection. The single-mode pigtail is yellow, with two wavelengths, 1310nm, and 1550nm, and the transmission distances are 10km and 120km respectively. It consists of 12 pigtails, the colors are blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, and light blue.


2. Product parameters of Single Mode​ Fiber Patch Cord 12 Cores:


ProjectSpec.Remarks
Operating wavelength1260~1650nmFollow GR326-CORE and IEC Standard
Insertion loss≤0.3dB
Return loss≥50dB
Repeatability≤0.2dB
Interchangeability≤0.2dB
Durability test500 times(△IL≤0.2dB)
Working temperature-40~85℃



3. Product Characteristics of Single Mode​ Fiber Patch Cord 12 Cores:

Bundle pigtails are composed of Corning tight-buffered optical fibers that comply with the full spectrum specification, wrapped with aramid fiber reinforcement elements, and then wrapped with a PVC outer sheath with certain flame-retardant properties. They are widely used in the dense connection between transmission lines and terminal equipment connect.


4. Product Features of Single Mode​ Fiber Patch Cord 12 Cores:
1. Comply with ANSI, Bellcore, TIA/EIA, IEC, and other international standards and domestic telecommunications industry standards
2. Enables Active Connections over Fiber Transport
3. Small insertion loss, large return loss
4. Good interchangeability and repeatability
5. Special specifications are available upon the customer’s request.



5. Applicable scope of Single Mode​ Fiber Patch Cord 12 Cores:

1. Data Transmission Networks
2. Image transmission Networks
3. Optical test instrument
4. Photoelectric automatic control system
Bundle pigtails are generally used in splice trays and integrated trays in optical fiber distribution frames or optical fiber transfer boxes, and can also be used as pigtails in terminal boxes.

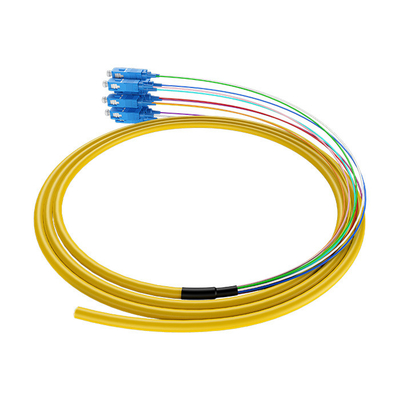

12 Cores Single Mode Fiber Patch Cord SCUPC Multi Core Connector 0


5. Product Description of Single Mode​ Fiber Patch Cord 12 Cores:

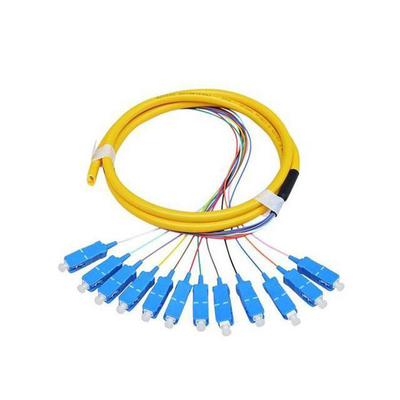

12 Cores Single Mode Fiber Patch Cord SCUPC Multi Core Connector 1
