GYTC8Y-2-228F Optical Fiber Cable Non Armored Aerial Fig8 For FTTX

Place of Origin China
Brand Name CFO
Certification IS9001:2025
Model Number GYTC8Y
Minimum Order Quantity 1 Kilometer/Kilometers
Packaging Details 1kilometer packing
Delivery Time 7-15days for bulk order
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 5000 Kilometer/Kilometers per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Sheath Material LSZH Or As Requested No.of Fibers 2-288
Standard G.652D Structure Multi-6 Fiber Per Tube
Type Fig-8 Usage Outdoor
High Light

Non Armored Optical Fiber Cable

,

FTTX Optical Fiber Cable

,

Non Armored Fiber Optic Cable

Leave a Message
Product Description

GYTC8Y-2-228F Optical Fiber Cable Non Armored Aerial Fig8 For FTTX



GYTC8Y-2-228F Fiber Optical Cable / Non-Armored Aerial Fig8 Optical Fiber Cable


Outdoor Cable / Non-Armored Aerial Fig8 Optical Fiber Cable For FTTH

1. Outdoor Cable / Non-Armored Aerial Fig8 Optical Fiber Cable Description:

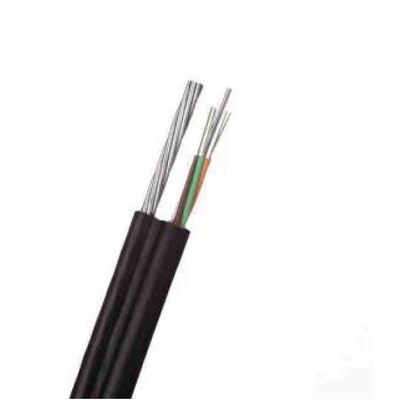

Self-supported figure 8 optical cable with fibers placed in jelly-filled loose buffer tube stranded around the dielectric central member. The cable core is protected with jelly or water-blocking material to prevent water intrusion and migration. This set unit and galvanized steel messenger are covered with a polyethylene outer jacket.

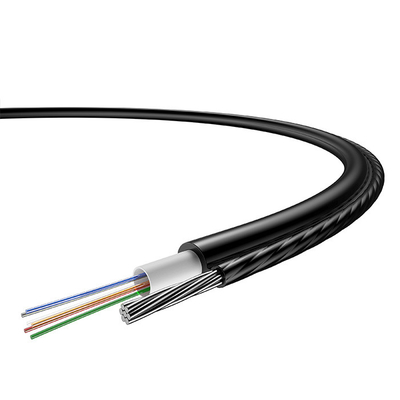

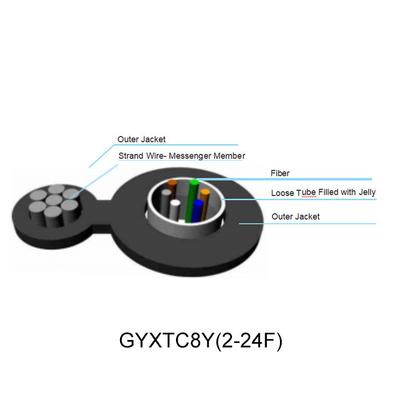

2. Outdoor Cable / Non-Armored Aerial Fig8 Optical Fiber Cable Structure and Technical Specifications --- GYXTC8Y(2-24F):



Fiber Count



Nominal

Diameter

(mm)



Nominal

Weight

(kg/km)







Allowable Tensile Load (N)



Allowable Crush

Resistance

(N/100mm)



Short Term

Long Term

Short Term

Long Term

2~12

6.0 X 12.5

85

4000 2000 200 100

>12





Available upon customer’s request


GYTC8Y-2-228F Optical Fiber Cable Non Armored Aerial Fig8 For FTTX 0

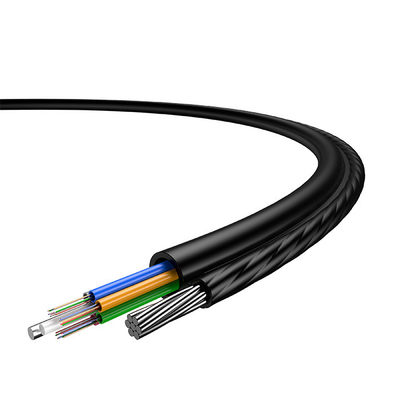

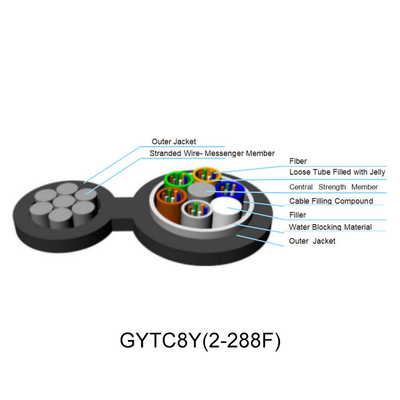

3. Outdoor Cable / Non-Armored Aerial Fig8 Optical Fiber Cable Structure and Technical Specifications --- GYTC8Y(2-228F):



Fiber Count



Nominal

Diameter

(mm)



Nominal

Weight

(kg/km)



Max Fiber

Per Tube



Max No. of (Tubes+fillers)







Allowable Tensile Load (N)



Allowable Crush

Resistance

(N/100mm)



Short Term Long Term Short Term Long Term
2~30



9.2×17.2



150



6 5 7000 3000 1000 300

32~48

10.2 ×18.2

172

8 6 7000 3000 1000 300

50 ~72

11.1×19.1

177 12 6 7000 3000 1000 300

74~96

12.4×20.4

201 12 8 7000 3000 1000 300



>98



Available upon customer’s request



GYTC8Y-2-228F Optical Fiber Cable Non Armored Aerial Fig8 For FTTX 1





4. Outdoor Cable / Non-Armored Aerial Fig8 Optical Fiber Cable Features:

1. Loose tube gel-filled construction for superior fiber protection.
2. UV and moisture-resistant design.
3. Self-supporting Figure 8 design.





5Outdoor Cable / Non-Armored Aerial Fig8 Optical Fiber Cable Applications:


1. Backbones and Access.

2. Installed aerially.




6. Carefibr Services

Any questions will be replied to within 24 hours.
Professional manufacturer, Welcome to visit our company.
100% test before shipping.
OEM/ODM is available (As required print logo and customized color).
Fast delivery time(2 days for samples,order 3~7 days for bulk production)

7. FAQ
Are you a trading company or a manufacturer?
We are a manufacturer specializing in Fiber Optic PLC splitters, Patch Cords, Adapter, Fast connectors, and other Communication Products. OEM & ODM services are available.
What is your delivery date?
The delivery date is about 5-15 days after receipt of payment.
Can you send free samples?
Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
or you can call your courier to pick it up from our office.
The cable marking can be as required for printing?
Yes, You have only to give us your marking.
