All Dielectric Aerial Drop Optical Fiber Cable Gel Filled Subnit

Place of Origin China
Brand Name CFO
Certification IS9001:2025
Model Number GYFXTY
Minimum Order Quantity 1 Kilometer/Kilometers
Packaging Details 1kilometer packing
Delivery Time 7-15days for bulk order
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 5000 Kilometer/Kilometers per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Characteristic Central Tube Cable Type Central Loose Tube Cable
Fiber Type G.652D Jaclet Materoal PE
Subnit Type Gel-filled Armor FRP Wires
High Light

All Dielectric Optical Fiber Cable

,

Gel Filled Subnit Optical Fiber Cable

,

Gel Filled Subnit FTTX Cable

Leave a Message
Product Description

All Dielectric Aerial Drop Optical Fiber Cable Gel Filled Subnit



GYFXTY-2-24 Cores Uni-Tube All Dielectric Aerial Drop Fiber Optic Cable For Fttx​


GYFXTY- Fiber Glass Yarn with FRP Strength Member Aerial Optical Fiber Cable


1. 2-24 Cores Uni-Tube All Dielectric Aerial Drop Fiber Optic Cable Description:


Carefiber's Uni-Tube All Dielectric Aerial Drop cable is specifically designed for Fiber-to -the-Subscriber applications. It is a round, all-dielectric cable ideally suited for self-supporting drop-type installations as well as in lashed or conduit builds. The overall glass yarn strength member is used for additional mechanical protection.

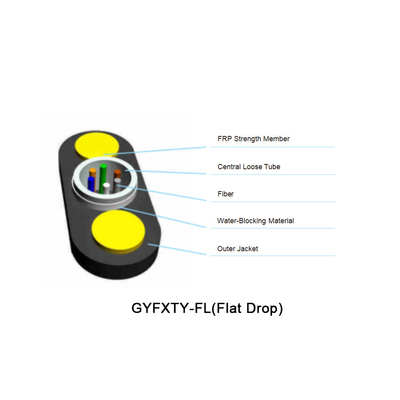

2. 2-24 Cores Uni-Tube All Dielectric Aerial Drop Fiber Optic Cable Structure and Technical Specifications --- GYFXTY-FL(Flat Drop):



Fiber Count



Nominal

Diameter

(mm)



Nominal

Weight

(kg/km)







Allowable Tensile Load (N)



Allowable Crush

Resistance

(N/100mm)



Aerial Install span with 1% sag

Short Term

Long Term

Short Term

Long Term

NESC Light NESC Medium NESC Heavy

2~12

4.5 X 8.0

39

1800 750 2000 800 100meters 80meters 50meters
14~24 4.9X8.4 45 1800 750 2000 800 80meters 60meters 40meters


All Dielectric Aerial Drop Optical Fiber Cable Gel Filled Subnit 0



3. 2-24 Cores Uni-Tube All Dielectric Aerial Drop Fiber Optic Cable Structure and Technical Specifications --- GYFXTY-FG(Round Drop):



Fiber Count



Nominal

Diameter

(mm)



Nominal

Weight

(kg/km)







Allowable Tensile Load (N)



Allowable Crush

Resistance

(N/100mm)



Aerial Install span with 1% sag

Short Term

Long Term

Short Term

Long Term

NESC Light NESC Medium NESC Heavy

2~12

6.5

35

1000 400 1000 300 80meters 50meters 30meters
14~24 7.0 40 1200 500 1000 300 70meters 40meters

20meters

All Dielectric Aerial Drop Optical Fiber Cable Gel Filled Subnit 1





4. 2-24 Cores Uni-Tube All Dielectric Aerial Drop Fiber Optic Cable Features:

1. Small size, Low cost.
2. Up to 24 fibers.
3. Uni-tube gel-filled construction for superior fiber protection.
4. Two parallel FRP wires and overall glass yarn to enhance tensile resistance. and protect the cable from mechanical damage.
5. Designed for use with inexpensive attachment hardware. Self-supported no messenger needed.





52-24 Cores Uni-Tube All Dielectric Aerial Drop Fiber Optic Cable Applications:



1. Outdoor application, Duct, Aerial, FTTx, Access.
2. Trunk power transmission system.
3. Access network and local network in high electromagnetic interfering situation




6. Carefibr Services

Any questions will be replied to within 24 hours.
Professional manufacturer, Welcome to visit our company.
100% test before shipping.
OEM/ODM is available (As required print logo and customized color).
Fast delivery time(2 days for samples,order 3~7 days for bulk production)

7. FAQ
Are you a trading company or a manufacturer?
We are a manufacturer specializing in Fiber Optic PLC splitters, Patch Cords, Adapter, Fast connectors, and other Communication Products. OEM & ODM services are available.
What is your delivery date?
The delivery date is about 5-15 days after receipt of payment.
Can you send free samples?
Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
or you can call your courier to pick it up from our office.
The cable marking can be as required for printing?
Yes, You have only to give us your marking.
