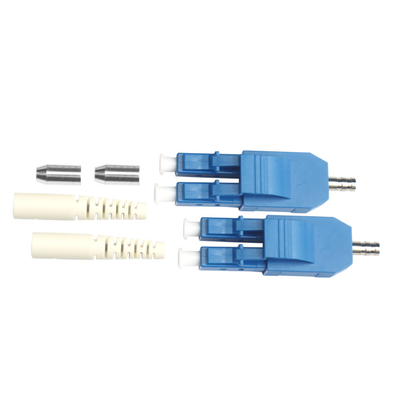

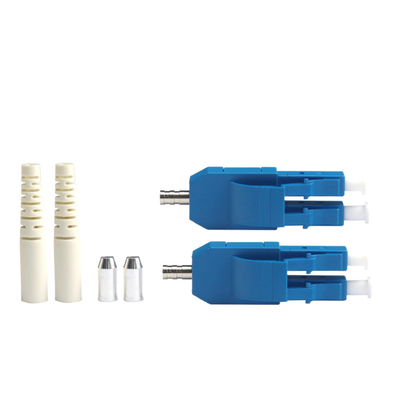

Round Duplex Optical Fiber Patch Cord LC UPC Uniboot SM G657.A1 9/125
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xBoot Type | Slotted / Smooth | Cable Outer Diameter | 0.9mm 2.0mm 3.0mm 4.0mm 5.0mm |
---|---|---|---|
Fiber Type | G652D;G657A2 | Warranty Time | 3 |
Application | Bow-type Drop Cable;2.0/3.0 Indoor Cable; Telecom Cable | Type | Fiber Adapter & Connector |
Packing | PE Bag | Housing Color | Beige;Blue;Brown; Yellow; Red; Optional |
High Light | Round Duplex Optical Fiber Patch Cord,LC UPC Optical Fiber Patch Cord,G657.A1 Fiber Patch Cord |

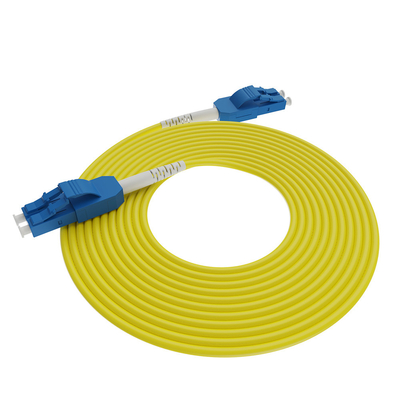

LC UPC Uniboot SM G657.A1 (9/125) ROUND Duplex Optical Fiber Patch Cord
1. Product Description:
The uniboot design allows one cable to carry both fibers, reducing cable congestion when routing. It is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Its reverse-polarity design allows for quick and easy polarity conversion without exposing the fibers or needing any tools.

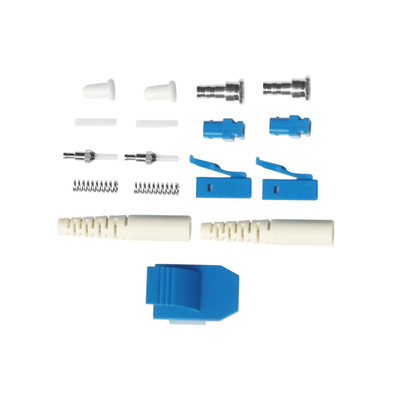

Carefiber offers a wide selection of fiber optic Connectors. Our selection includes SC, FC, LC, ST, E-2000, MTRJ, MU, MTP, MPO, DIN, SMA-905/906, and D4 models. What differentiates us is that our patch cord connectors have been designed with a utility patent. This provides a unique solution to fiber connection.
2. Technical Parameters:
Project | Spec. | Standard |
Operation loss | 1310/1550nm |
GR-326-CORE; IEC 61300 |
Insertion loss | ≤0.2dB | |
Return loss | ≥50dB | |
Repeatability | ≤0.2dB | |
Interchangeability | ≤0.2dB | |
Mechanical Endurance | ≥500 Times | |
Working temperature | -40~+85℃ |
3. Features:
1. Space-saving: Since there is only one guide sleeve, the Uniboot LC connector takes up less space during optical cable routing, and is especially suitable for high-density optical fiber connection environments, such as data centers.
2. Simplified connection: The reversibility and color coding of Uniboot LC connectors make the connection process simpler and more flexible, reducing the possibility of connection errors.
3. Flexibility: Uniboot LC connectors can adapt to different fiber transmission direction requirements, providing greater flexibility.
4. Applications:
1. Data Transmission Networks
2. Image transmission Networks
3. Optical test instrument
4. Photoelectric automatic control system
5. Carefiber Services:
1. Any questions will be replied to within 24 hours.
2. Professional manufacturer, Welcome to visit our company.
3. 100% test before shipping.
4. OEM/ODM is available (As required print logo and customized color).
5. Fast delivery time(2 days for samples,order 3~7 days for bulk production)
6. FAQ:
A: A Fiber Optic Patch Cord is a length of fiber optic cable terminated with a connector on each end, used to connect network devices like switches, routers, media converters, etc. The brand name is CFO and the place of origin is China.
A: There are two types of Fiber Optic Patch Cord: single-mode and multimode. Single-mode Fiber Optic Patch Cord is used for long-distance communication. Multimode Patch Cord is used for short-distance communication.
A: Fiber Optic Patch Cord has many advantages, including high speed and large bandwidth, low power consumption, low signal loss, and electromagnetic interference immunity.
A: The most common connectors used in Fiber Optic Patch Cord are LC, SC, ST, and FC. They are used to connect network devices like switches, routers, media converters, etc.
A: The length of Fiber Optic Patch Cord varies from 0.5m to 100m, depending on the application.
