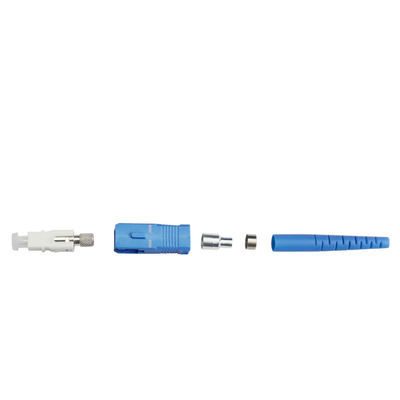

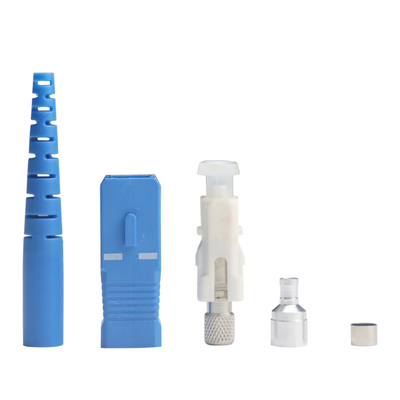

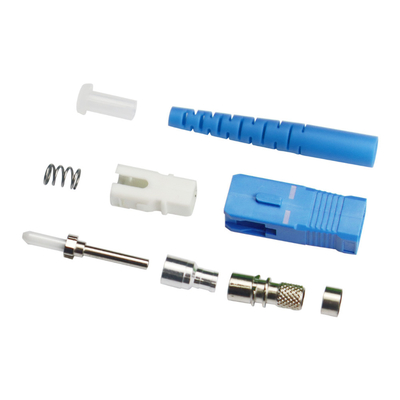

SM/MM SC UPC Fiber Optic Fast Connector 2.0mm PE Bag Packing

  • SM/MM SC UPC Fiber Optic Fast Connector 2.0mm PE Bag Packing
  • SM/MM SC UPC Fiber Optic Fast Connector 2.0mm PE Bag Packing
  • SM/MM SC UPC Fiber Optic Fast Connector 2.0mm PE Bag Packing
  • SM/MM SC UPC Fiber Optic Fast Connector 2.0mm PE Bag Packing
Place of Origin China
Brand Name CFO
Certification IS9001:2025
Model Number SC UPC

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty Time 3 Packing PE Bag
Conector SC Cable Outer Diameter 0.9mm 2.0mm 3.0mm 4.0mm 5.0mm
Type Fiber Adapter & Connector Ferrule Endface UPC
Housing Color Beige;Blue;Brown; Yellow; Red; Optional Fiber Type G652D;G657A2
High Light

SC UPC Fiber Optic Fast Connector

,

SC UPC Fast Connector 2.0mm

,

MM SC UPC Fast Connector
Leave a Message
Product Description

Factory Manufacture SM/MM Fiber Optical Connector 2.0mm / SC UPC

1. Product Description:

SC stands for "Standard Connector", which is a precision single-mode and multi-mode fiber optic connector.
The SC connector adopts a circular shape and has a push-in connection method. It has bidirectional connection capabilities and can realize bidirectional transmission of optical signals in fiber optic communication systems. The external structure of the SC connector consists of a fixed insertion sleeve and a housing with insertion and withdrawal mechanisms. Inside the insertion sleeve is a circular ceramic or metal sleeve that positions and protects the end of the fiber.



Carefiber offers a wide selection of fiber optic Connectors. Our selection includes SC, FC, LC, ST, E-2000, MTRJ, MU, MTP, MPO, DIN, SMA-905/906, and D4 models. What differentiates us is that our patch cord connectors have been designed with a utility patent. This provides a unique solution to fiber connection.

2. Technical Parameters:

Project Spec. Standard
Operation loss 1260～1650nm

GR-326-CORE；

IEC 61300
Insertion loss ≤0.3dB(Typical value:0.2dB)
Return loss

≥60dB(APC)≥50dB(UPC)
Repeatability ≤0.2dB
Interchangeability ≤0.2dB

Mechanical Endurance

≥500 Times
Working temperature -40～+85℃



Duplex LC APC Connector Fiber Optic Patch Cord for Outdoor Applications 0

3. Features:

1. Low insertion loss: The design of the SC connector reduces the insertion loss of optical signals and ensures high-quality signal transmission.

2. High-precision alignment: SC connectors adopt a precise alignment mechanism to ensure accurate docking between optical fibers and reduce signal attenuation and loss.

3. Convenient to use: The insertion and withdrawal mechanism of the SC connector is easy to operate, making connection and disconnection simple and fast.

4. Applications:

1. Data Transmission Networks

2. Image transmission Networks

3. Optical test instrument

4. Photoelectric automatic control system

5. Carefiber Services:

1. Any questions will be replied to within 24 hours.

2. Professional manufacturer, Welcome to visit our company.

3. 100% test before shipping.

4. OEM/ODM is available (As required print logo and customized color).

5. Fast delivery time(2 days for samples,order 3~7 days for bulk production)

6. FAQ:

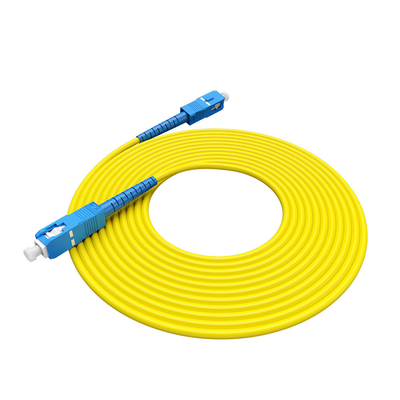

Q1: What is a Fiber Optic Patch Cord?

A: A Fiber Optic Patch Cord is a length of fiber optic cable terminated with a connector on each end, used to connect network devices like switches, routers, media converters, etc. The brand name is CFO and the place of origin is China.

Q2: What are the types of Fiber Optic Patch Cord?

A: There are two types of Fiber Optic Patch Cord: single-mode and multimode. Single-mode Fiber Optic Patch Cord is used for long-distance communication. Multimode Patch Cord is used for short-distance communication.

Q3: What are the advantages of Fiber Optic Patch Cord?

A: Fiber Optic Patch Cord has many advantages, including high speed and large bandwidth, low power consumption, low signal loss, and electromagnetic interference immunity.

Q4: What kind of connector is used for a Fiber Optic Patch Cord?

A: The most common connectors used in Fiber Optic Patch Cord are LC, SC, ST, and FC. They are used to connect network devices like switches, routers, media converters, etc.

Q5: What is the length of the Fiber Optic Patch Cord?

A: The length of Fiber Optic Patch Cord varies from 0.5m to 100m, depending on the application.
