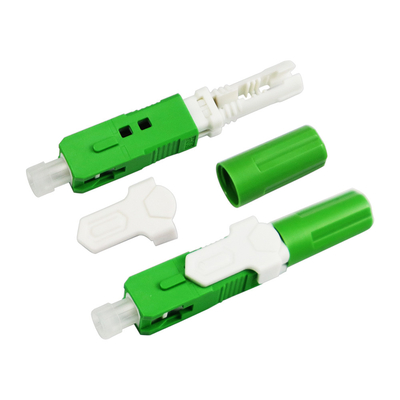

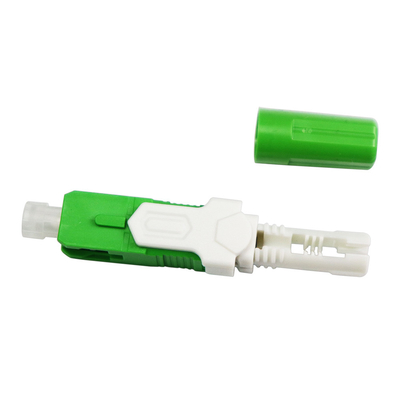

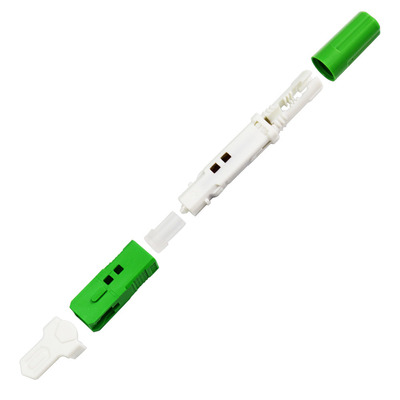

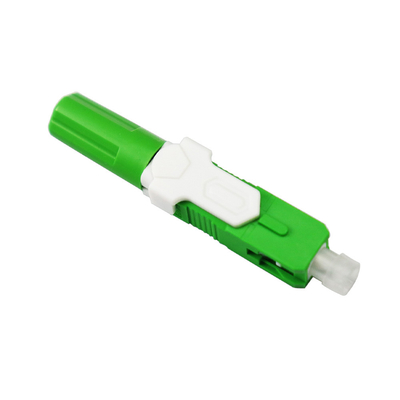

Fiber Optic Fast Connector SC/APC Singlemode Fiber Optic PrePolished Connector Embedded for CATV Network

Place of Origin China
Brand Name CFO
Certification IS9001:2025
Model Number CFO-SC-5402
Minimum Order Quantity 1000pcs
Packaging Details 10 pc in box

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cable Type 3.0mm Cable , FTTH Operating Temperature -40°C To +85°C
Operation Temperature -40 ~+75 Degree Flammability Rate UL94-V0
Cable Diameter 3.0mm Tensile 30N
Package Details 45 X 25 X 24 CM:(1000PCS) Fiber G652D, G657A
Selling Units Single Item Repeatability ≥5 Times
Key Words Fast Connector Fiber Mode Single & Multi Mode
Leave a Message
Product Description

Fiber Optic Fast Connector SC/APC Singlemode Fiber Optic PrePolished Connector Embedded for CATV Network



An optical fiber quick connector is an optical fiber connector used for on-site assembly. It is widely used in fiber-to-the-home (FTTH) access
optical networks. It is not only suitable for single-mode or multi-mode fiber but also 900 microns, 3 mm. And the 8-shaped drop cable category,
used to connect other equipment and optical fiber panels, the installation process only takes about 2 minutes, this kind of connector does not
require any glue and curing process during the installation process.



1. Product Features of Fiber Optic Fast Connector SC/APC Singlemode Fiber Optic PrePolished Connector Embedded for CATV Network​ :



1. Low Insertion Loss, High Return Loss
2. Simplex, Duplex, Quad available
3. Sustained, good performance
4. Use of low cost, Use of good performance
5. Fast installation



2. Optical Performance of Fiber Optic Fast Connector SC/APC Singlemode Fiber Optic PrePolished Connector Embedded for CATV Network​ :



Project Index Remarks
Suitable for optical cable 1260~1650nm Consistent with GR326,IEC
Plug type SC/UPC  SC/APC
Fiber Diameter 0.125mm
Insertion loss
<0.5dB (typical value 0.2dB)
Return loss APC ≥55dB;UPC≥45dB
Repeatability 500 repetitions / I L ≤0.3 DB
Tensile Strength ≥30N(Δ IL≤ 0.2dB)
Operation time About 50S
Reusable ≥10 times
Operating Temperature -25~+85℃
High and low-temperature cycle
△IL<0.3dB, △RL<5dB




Fiber Optic Fast Connector SC/APC Singlemode Fiber Optic PrePolished Connector Embedded for CATV Network 0



3. Applicable scope of Fiber Optic Fast Connector SC/APC Singlemode Fiber Optic PrePolished Connector Embedded for CATV Network​ :



1. Used to open the FTTH fiber terminal end.
2. In the box, cabinet, such as wiring into the box.
3. Off the back of the accidents such as fiber, maintenance.
4. LAN, wan, data, and video transmission.
5. The construction of the fiber end-user access and maintenance.
6. Optical fiber access of mobile base station.





4. Fiber Cutting Length of Fiber Optic Fast Connector SC/APC Singlemode Fiber Optic PrePolished Connector Embedded for CATV Network​ :



Spiral Types FTTH Pre Embedded Fiber Optic Fast Connector Assembly On Site 0

                                                                Fixed length device



Spiral Types FTTH Pre Embedded Fiber Optic Fast Connector Assembly On Site 1

                                                       Optical fiber cutting length diagram
