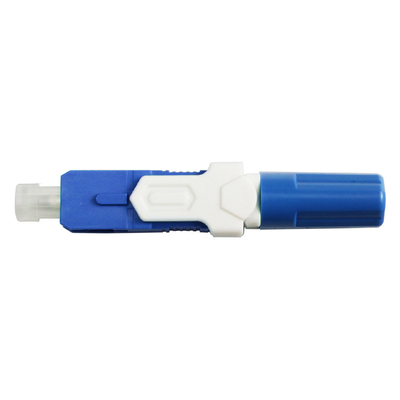

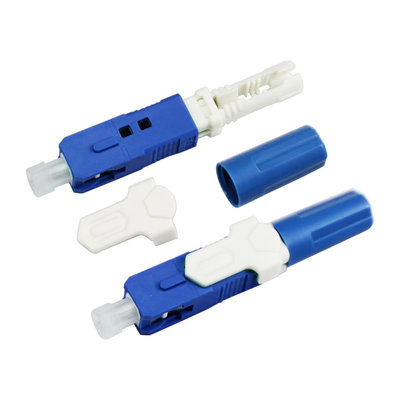

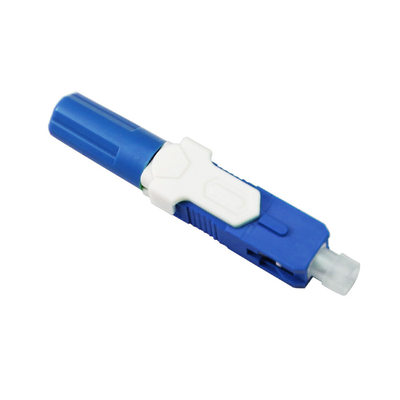

Embedded FTTH Fiber Optic Connector FTTH SC/UPC Single-mode Fiber optic Fast Connector

  • Embedded FTTH Fiber Optic Connector FTTH SC/UPC Single-mode Fiber optic Fast Connector
  • Embedded FTTH Fiber Optic Connector FTTH SC/UPC Single-mode Fiber optic Fast Connector
  • Embedded FTTH Fiber Optic Connector FTTH SC/UPC Single-mode Fiber optic Fast Connector
  • Embedded FTTH Fiber Optic Connector FTTH SC/UPC Single-mode Fiber optic Fast Connector
Place of Origin China
Brand Name CFO
Certification IS9001:2025
Model Number CFO-SC-5402
Minimum Order Quantity 1000pcs
Packaging Details 10 pc in box

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cable Type 3.0mm Cable , FTTH Operating Temperature -40°C To +85°C
Operation Temperature -40 ~+75 Degree Flammability Rate UL94-V0
Cable Diameter 3.0mm Tensile 30N
Package Details 45 X 25 X 24 CM:(1000PCS) Fiber G652D, G657A
Selling Units Single Item Repeatability ≥5 Times
Key Words Fast Connector Fiber Mode Single & Multi Mode
Leave a Message
Product Description

Embedded FTTH Fiber Optic Connector FTTH SC/UPC Single-mode Fiber optic Fast Connector



An optical fiber quick connector is an optical fiber connector used for on-site assembly. It is widely used in fiber-to-the-home (FTTH) access
optical networks. It is not only suitable for single-mode or multi-mode fiber but also 900 microns, 3 mm. And the 8-shaped drop cable category,
used to connect other equipment and optical fiber panels, the installation process only takes about 2 minutes, this kind of connector does not
require any glue and curing process during the installation process.



1. Product Features of Embedded FTTH Fiber Optic Connector FTTH SC/UPC Single-mode Fiber optic Fast Connector​​ :



1. Low Insertion Loss, High Return Loss
2. Simplex, Duplex, Quad available
3. Sustained, good performance
4. Use of low cost, Use of good performance
5. Fast installation



2. Optical Performance of Embedded FTTH Fiber Optic Connector FTTH SC/UPC Single-mode Fiber optic Fast Connector​​ :



Project Index Remarks
Suitable for optical cable 1260～1650nm Consistent with GR326,IEC
Plug type SC/UPC  SC/APC
Fiber Diameter 0.125mm
Insertion loss
<0.5dB (typical value 0.2dB)
Return loss APC ≥55dB;UPC≥45dB
Repeatability 500 repetitions / I L ≤0.3 DB
Tensile Strength ≥30N(Δ IL≤ 0.2dB)
Operation time About 50S
Reusable ≥10 times
Operating Temperature -25～+85℃
High and low-temperature cycle
△IL<0.3dB, △RL<5dB




Embedded FTTH Fiber Optic Connector FTTH SC/UPC Single-mode Fiber optic Fast Connector 0



3. Applicable scope of Embedded FTTH Fiber Optic Connector FTTH SC/UPC Single-mode Fiber optic Fast Connector​​ :



1. Used to open the FTTH fiber terminal end.
2. In the box, cabinet, such as wiring into the box.
3. Off the back of the accidents such as fiber, maintenance.
4. LAN, wan, data, and video transmission.
5. The construction of the fiber end-user access and maintenance.
6. Optical fiber access of mobile base station.





4. Fiber Cutting Length of Embedded FTTH Fiber Optic Connector FTTH SC/UPC Single-mode Fiber optic Fast Connector​​ :



Spiral Types FTTH Pre Embedded Fiber Optic Fast Connector Assembly On Site 0

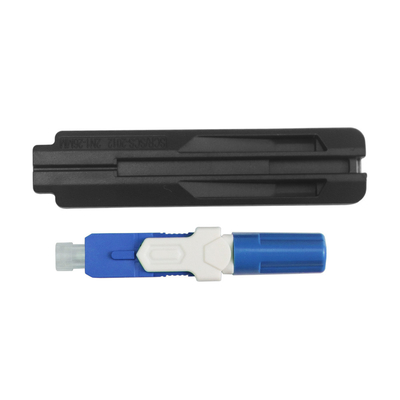

                                                                Fixed length device



Spiral Types FTTH Pre Embedded Fiber Optic Fast Connector Assembly On Site 1

                                                       Optical fiber cutting length diagram





5. Carefiber Service:

Carefiber Optical Technology Co., Ltd. is in Longhua New District, Shenzhen City, Guangdong Province. Founded in 2010, after 10 years, Carefiber group has HK Carefiber, Guizhou Carefiber, and Guangxi Carefiber three sub-companies, they both are high-tech enterprises dedicated to research, development, production, and sales of FTTH products in the following categories: Indoor/outdoor drop cable, Fiber optical fast connector, Patch cord, Pigtail, PLC splitter, FTB coupler, Adaptor, Fiber distribution box, Fiber distribution frame, Fiber Joint closure, indoor and outdoor base station wiring products, MPO, data center products, 5G supporting solutions, etc, Carefiber provides customers with standard products and customized products of the integrated solutions.



Our Vision: Be a first-class optical communication enterprise.

Our Mission: Better products, technology, and services for customers.

Our Value: Strive for creation and super excellence. Make customers succeed based on mutual benefit.

FAQ:

Frequently Asked Questions (FAQs) for Fiber Optic Distribution Box:

1. What is the brand name of this product?

The brand name of this product is CFO.

2. Where is this product manufactured?

This product is manufactured in China.

3. What certifications does this product have?

This product has CE and Rohs certifications.

4. What is the minimum order quantity for this product?

The minimum order quantity for this product is 100.

5. What is the delivery time for this product?

The delivery time for this product is 7-25 days.

6. What are the payment terms for this product?

The payment terms for this product are L/C, D/A, D/P, T/T, Western Union, and MoneyGram.

7. What is the packaging detail for this product?

The packaging detail for this product is 1pc/bag.

8. What is the supply ability for this product?

The supply ability for this product is 500pcs/day.
