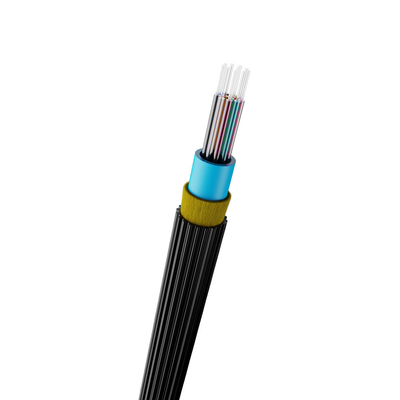

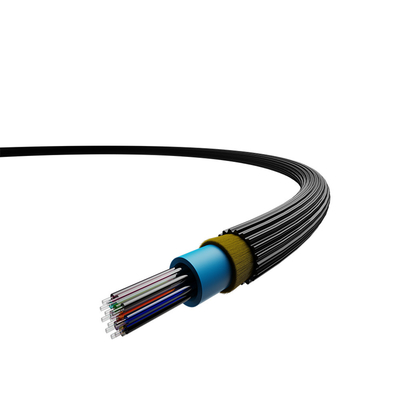

Network Drop Air-blown Cables ABC Ultra-light Tight Flexible Through-wall Access

  • Network Drop Air-blown Cables ABC Ultra-light Tight Flexible Through-wall Access
  • Network Drop Air-blown Cables ABC Ultra-light Tight Flexible Through-wall Access
  • Network Drop Air-blown Cables ABC Ultra-light Tight Flexible Through-wall Access
Brand Name CFO
Model Number GCYFXHTY
Minimum Order Quantity 1km

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Each Tube 2-24 Fibers Fiber Specification G652D, G657A, OM1, OM2, 0M3, OM4
Forming Way Stranded Life Span >30 Years
Model No GCYFXHTY Strength Antistatic Ultra-low Friction Composite Material
High Light

Through-wall Access Air-blown Cables

,

Network Drop Air-blown Cables
Leave a Message
Product Description

Ultra-light tight flexible through-wall access network drop Air-blown Cables ABC​


1. Ultra-light tight flexible through-wall access network drop Air-blown Cables ABC Description:

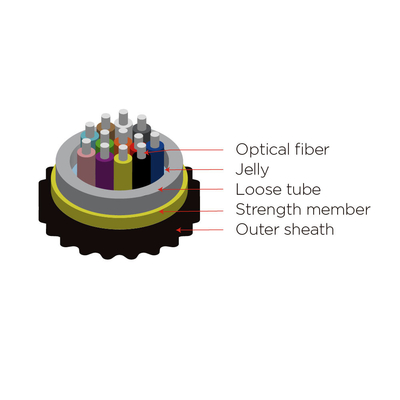

Air-blowing fiber, also known as jet fiber, is an efficient way to install fiber optic cable and facilitates the future expansion of fiber optic networks. The structure of this cable is put 250µm single-mode or multi-mode optical fiber into a loose tube, the loose tube is made of high modulus material, which is filled with non-toxic and harmless waterproof compounds. The FRP strength member is put in the central tube to strengthen the cable. Outside of the loose tube is with Ripcord and polyethylene (HDPE) sheath.


2. Ultra-light tight flexible through-wall access network drop Air-blown Cables ABC Cable Dimensions and Constructions



Items Descriptions
Optical Fiber Fiber count 2-12FO 24FO
Color
Blue Orange Green Brown Grey Natural Red Black Yellow Violet Pink
Aqua
The color wheel to distinguish
The second set of 12 fibers with black rings is separated from the first set
of 12, and the color of NO.20 fiber is natural.
Loose tube Material High-strength composite materials
Color Natural color
Structure Jelly
Strength Member Material High tensile tensile yarn
Sheath Material Antistatic ultra-low friction composite material
Color Black
Diameter 2.3±0.2 mm 2.6±0.2 mm
Weight  ±5%kg/km 6.5 8.5


GYTC8Y-2-228F Optical Fiber Cable Non Armored Aerial Fig8 For FTTX 0





3. OUltra-light-tight flexible through-wall access network drop Air-blown Cables ABC Cable Features:

1. The unique second coating and stranding technology provide the fibers with enough space and bending
2. Endurance, which ensures good optical properties of the fibers in the cable
3. Accurate process control ensures good mechanical and temperature performance
4. High-quality raw material guarantees the long service life of cable





4. Ultra-light tight flexible through-wall access network drop Air-blown Cables ABC Cable Applications:



1. Air blowing installation
2. Underground networks




5. Carefibr Services

Any questions will be replied to within 24 hours.
Professional manufacturer, Welcome to visit our company.
100% test before shipping.
OEM/ODM is available (As required print logo and customized color).
Fast delivery time(2 days for samples,order 3~7 days for bulk production)

6. FAQ
Are you a trading company or a manufacturer?
We are a manufacturer specializing in Fiber Optic PLC splitters, Patch Cords, Adapter, Fast connectors, and other Communication Products. OEM & ODM services are available.
What is your delivery date?
The delivery date is about 5-15 days after receipt of payment.
Can you send free samples?
Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
or you can call your courier to pick it up from our office.
The cable marking be as required for printing?
Yes, You have only to give us your marking.
