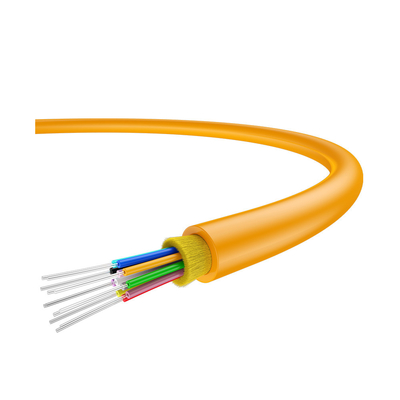

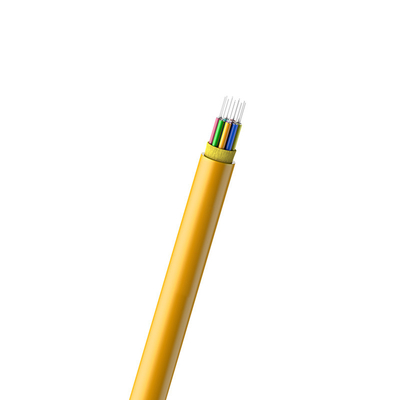

Indoor Optical Fiber Cable Single Mode GJFJV 4/6/8/12/24/48 Cores LSZH Fiber Cable

Place of Origin China
Brand Name CFO
Certification IS9001:2025
Model Number GJFJV
Minimum Order Quantity 1km

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Fiber 4-48 Jacket Color Orange
Modle Fiber Optic Cable GJFJV-X Thickness 0.1-0.35mm, Customized
Fiber Single Mode, Multimode, OM3, OM4, OM5 Sheath Material LSZH Or PVC
High Light

single mode optical fiber cable

,

Indoor optical fiber cable

,

LSZH fiber cable

Leave a Message
Product Description

Product Description:

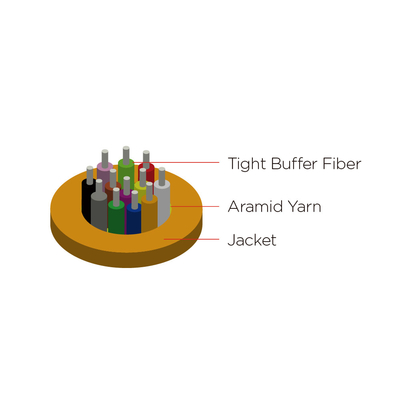

MPC Multi-Purpose Distribution cable uses several Φ900 µm flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.

Features:

  • Tight buffer fiber easy of stripping.
    2. Tight buffer fiber has excellent flame-retardant performance.
    3. Aramid yarn as a strength member makes cable have excellent tensile strength.
    4. The outer jacket material has many advantages such as anti-corrosion water, anti-ultraviolet radiation, flame-retardant, and harmless to the environment, etc.

Optical Characteristics:

Fiber Type Attenuation Overfilled Launch Bandwidth Effective Modal Bandwidth

10Gb/s Ethernet

link length

Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22         16
G657A1 0.36/0.22         10
G657A2 0.36/0.22         7.5
50/125   3.0/1.0 ≥500/500     30
62.2/125   3.0/1.0 ≥200/500     30
OM3   3.0/1.0 ≥ 1500/500 ≥2000 ≥300 30
OM4   3.0/1.0 ≥3500/500 ≥4700 ≥550 30
BI-OM3   3.0/1.0 ≥ 1500/500 ≥2000 ≥300 7.5
BI-OM4   3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5





Structure and Technical Specifications :



Fiber

Count

Cable

Diameter

(mm)

Cable Weight

(kg/km)

Tensile Strength

(N/100mm)

Crush Resistance

(N/100mm)

PVC Jacket LSZH Jacket Short Term Long Term Short Term Long Term
4 4.8±0.3 16 18 440 130 1000 300
6 5.1±0.3 20 23 440 130 1000 300
8 5.6±0.3 27 31 440 130 1000 300
12 6.2±0.3 32 36 440 130 1000 300
24 8.1±0.3 53 57 660 200 1000 300





Indoor Optical Fiber Cable Single Mode GJFJV 4/6/8/12/24/48 Cores LSZH Fiber Cable 0

Applications:



Indoor any purpose cable distribution.

Backbone distribution cable in a building.

Multi optical fiber jumper.



Carefiber Services:

1. Any questions will be replied to within 24 hours.

2. Professional manufacturer, Welcome to visit our company.

3. 100% test before shipping.

4. OEM/ODM is available (As required print logo and customized color).

5. Fast delivery time(2 days for samples,order 3~7 days for bulk production)

FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is CFO.
  • Q: What is the model number of this product?
  • A: The model number of this product is GJFJBV.
  • Q: Where is this product manufactured?
  • A: This product is manufactured in China.
  • Q: What is the structure of this optical fiber cable?
  • A: The structure of this optical fiber cable is GJFJBV.
  • Q: What is the maximum transmission distance of this cable?
  • A: The maximum transmission distance of this cable is 2km.
